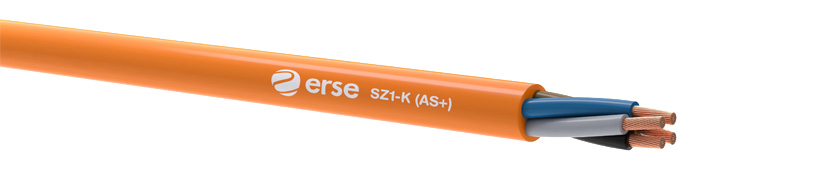

SZ1-K (AS+)

Machine and equipment that are required to continue its function during a fire ( emergency elevators, fire water pumps etc.)
Ventilation systems are which are connected to fire alarm system
In emergency lighting at fire escape exits
Emergency power supplies
In places where human life and valuable materials and equipment need to be protected: hospitals, schools, museums, airport, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.

Conductor	EN 60228 Class 5 Stranded Electrolytic Plain Copper
Insulation	Special, fire resistant silicone rubber type EI2 to EN 50363-1
Insulation Colour	HD 308 S2
Stranding	In Layers Of Optimum Pitch
Sheath	HFFR Compound according to IEC 60502-1e
Sheath Colour	RAL2003 Orange
Available Sections	from 1,5 to 50 mm²

Insulation Colour

1C	Back
2C	Blue-Brown (OB)
3C	Yellow/Green-Blue-Brown (JB) / Brown-Black-Grey (OB)
4C	Yellow/Green-Brown-Black-Grey (JB) / Blue-Brown-Black-Grey (OB)
5C	Yellow/Green-Blue-Brown-Black-Grey (JB) / Blue-Brown-Black1-Grey-Black2 (OB)

WORKING VOLTAGE	TEST VOLTAGE	MINIMUM BENDING RADIUS	WORKING TEMPERATURE	SHORT CIRCUIT TEMPERATURE	INSULATION RESISTANTCE
0,6/1 kV	4000 V	12 x Ø	-40°C ~+90°C (Fixed Laying)	+250ºC	100 MΩ x km

FLAME RETARDANT TEST	FLAME PROPAGATION TEST	SMOKE DENSITY TEST	TEST ON CORROSIVENESS COMBUSTION GASES	HALOGEN FREE TEST	CIRCUIT INTEGRITY TEST (FE180)	CIRCUIT INTEGRITY WITH SHOCK TEST (PH120)
EN 60332-1-2	EN IEC 60332-3-24 (CAT C)	EN 61034-2	EN 60754-2	EN 60754-1	IEC 60331-21	EN 50200/EN 60331-1
