RG 59/U-6 Cu/Cu HFFR

Name: RG 59/U-6 Cu/Cu HFFR Coaxial Cable - Erse Kablo
Brand: Erse Kablo
Rating: 5 (1 reviews)

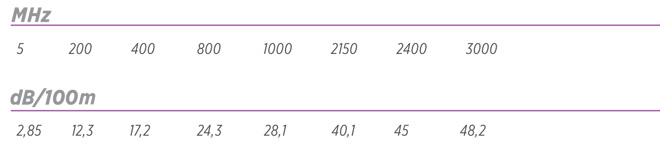

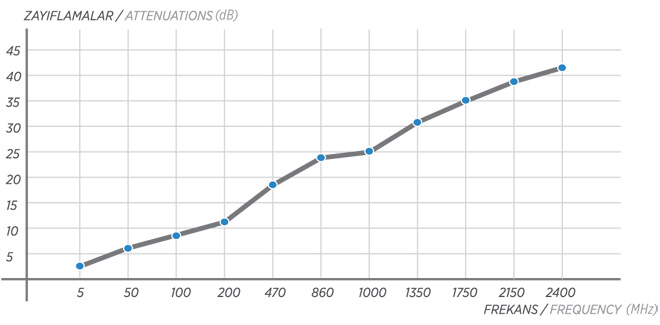

It is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation is required.
These cables which have flame retardant characteristics by their design are used in places where people are densely populated (such as shopping centers, hotels etc.) and places in which it is required that there is no smoke and corrosive gases emitted by fire which threats to human health.

Conductor	0,80mm Ø Electrolytic Copper
Insulation	3,70mm Ø Physical Foam PE
1.Screen	Cu-Pes Tape (100% Coverage)
2.Screen	Electrolytic Copper Braid
Sheath	5,80mm Ø HFFR Compound Black or Grey
Total Weight	39kg/km
SStandard Length	100/500/1000/2000m

INSULATION RESISTANCE	MUTUAL CAPACITANCE	VELOCITY OF PROPAGATION	OPERATING VOLTAGE	TEST VOLTAGE	BENDING RADIUS	TEMPERATURE RANGE	IMPEDANCE
>2000MΩxkm	53±2 pF/mt	82 %	1,1 kV	2,5 kV	15x Cable Ø	-40ºC+70ºC	75±3 Ω

FLAME RETARDANT TEST	SMOKE DENSITY TEST	TEST ON CORROSIVENESS OF COMBUSTION GASES	HALOGEN FREE TEST	FLAME PROPOGATION TEST
IEC 60332-1-2	IEC 61034-2	IEC 60754-2	IEC 60754-1	IEC 60332-3-25
